For Automatic Assembly Machines HSV-RB (8 Models in Total)
For Automatic Assembly Machines HSV-RB (8 Models in Total)

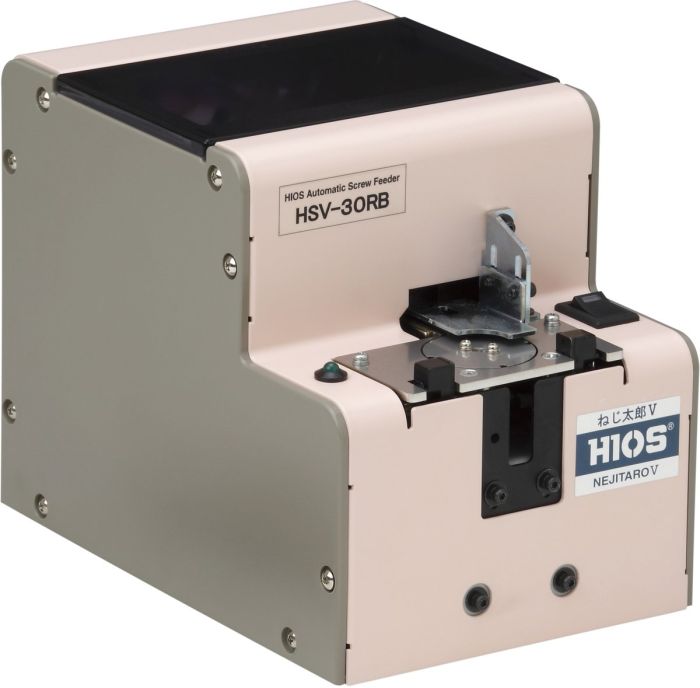

The work efficiency of a production line will be dramatically improved using the HSV-RB model. With a screw capacity of 80cc, this machine can line up screws (Type M1-M3) and supplies them one by one to increase the efficiency of screwing work. Different sizes of screws can be used by changing the rail, escaper, passing plate and the robot escaper guide.
Key Features:
- A single unit can handle eight screw sizes by simply replacing the rail.
- The rotary escaper has been adopted to take out screws. It has realized stable catching of screws by eliminating tangling of screws.
- Quickly catches unstable screws. For example, countersunk screws, screws with washer and thinner head screws can be handled.
- Compatible with suction types (for automatic assembly machines).
Models Available:
HSV-10RB (M1.0)
HSV-12RB (M1.2)
HSV-14RB (M1.4)
HSV-17RB (M1.7)
HSV-20RB (M2.0)
HSV-23RB (M2.3)
HSV-26RB (M2.6)
HSV-30RB (M3.0)
Key Information


Check operation - Check if the machine has the parts which match the nominal diameter of the screws to be loaded. Check the model number of the rail, escaper, escaper guide for the robot and passing plate by referring to the following table.


Quantity of screws - An excessive amount of screws, loaded into the chamber, will have an adverse effect on the screw alignment and transport. The figure, shown at right, indicates the maximum amount of screws to be loaded. Use this as a guide when loading the screws.
