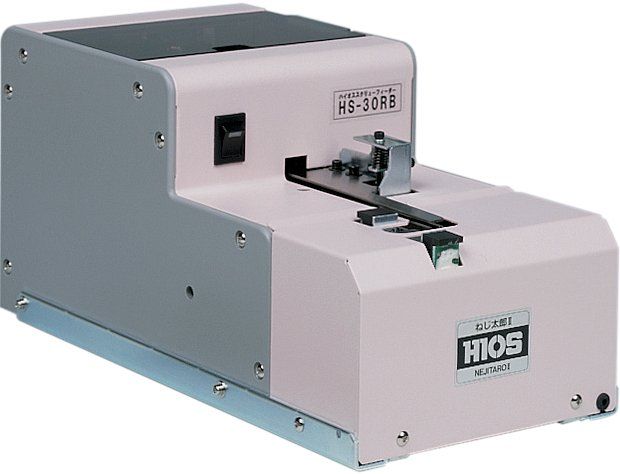

For Automatic Assembly Machines HS-RB (3 Models in Total)
For Automatic Assembly Machines HS-RB (3 Models in Total)
The work efficiency of a production line will be dramatically improved with the HS-RB model. Compared to the other HIOS models, the HS-RB has a large screw capacity of 150cc, and can handle three screw diameters by changing rails.
Key Features:
- It has a large screw capacity of 150cc.
- Compatible with the suction type (for automatic assembly machines).
Models Available:
HS-35RB (M3.5)
HS-40RB (M4.0)
HS-50RB (M5.0)
Key Information


Pre-operational checks and adjustments - Before using the machine, verify that the model matches the screw size to be used. To confirm the model number, remove the escaper cover and note the labels attached to the rail assembly and escaper. The identification label marking is in R** form.


Adjusting the height of the brushes - The brushes in the HSF should rotate at a height where they come in contact with the screw heads going into the rail groove. If adjustement is required, loosen the brush height adjustment screw.


Loading the screws - Remove the screw bin lid. While the bin dipper plates are at the lowest position, you can pour in the screws until they are piled up to about 3 mm from the rail upper surface. Ensure that the screws are equally distributed into the right- and left-hand bins. Exercise care not to load the screws to excess.
