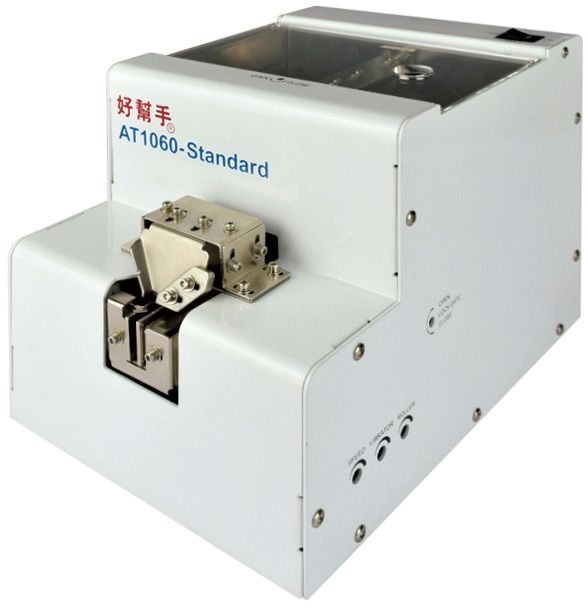

Adjustable Screw Feeder M1 - M6 Screws AT-1060
The AT-1060 Adjustable Screw Feeder is an excellent solution for those who need an automated screw feeding solution.
It is a perfect partner to our range of electric screw feeders.
This single unit can handle a range of screw sizes from M1 to M6 using the adjustable rail.
- Adjustable Rail
- Sweeping Brush
- Easy Adjustment of Vibration and Speed
- Pick-up rate up to two screws per second.
A version of this with a Screw Counter is also available.
Hopper Size: 100x145x100mm (1450cm3)
|Protection/Recovery Function||Overload Protection Circuit, Reverse Power Polarity Prevention Circuit|
Input: 100 - 240 VAC, 50/60Hz
|Dimension||235 (L) x 165 (W) x 180 (H) mm|
|Screws Diameter||M1 - M6 (#000 - #12)|
|Maximum Screw Length||25mm|
|Minimum Screw Length||
Screw with Spring Washer:
Screw with Spring and Flat Washers:
- AT-1060 Screw Feeder
- AT-L40790-1 AC Adapter
- Hex Wrench (M2)
- Rail Adjustment Shims
- Alternate Stopper
- Instruction Manual
