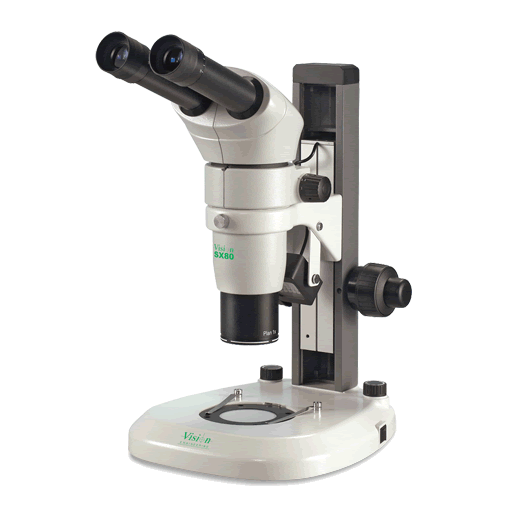

SX80 Binocular Stereo Zoom Microscope

The SX80 stereo microscope is a binocular vision system, designed by Vision Engineering, that is ideal for work with PCB’s.

With an 8:1 zoom ratio, the SX80 provides the ability to inspect components/specimens at low and high magnification in a single system, with the added flexibility of a wide range of options and system configurations.

Building on more than 60 years optical experience, Vision Engineering’s SX80 binocular stereo microscopes deliver high quality, highly versatile stereo viewing, making an ideal choice for users who demand outstanding optics and affordability.

The SX80 has the second highest zoom ratio in the SX family of quality stereo microscopes.

For any advice on tailoring this SX80 stereo microscope to your application, please give us a call today on 023 8065 0065 or email [email protected].

Why Use The SX80 Microscope?

• 8x – 64x standard magnification range (256x max)
• High optical quality CMO stereo microscope, designed to be affordable
• Precision optics deliver high resolution and flat field
• Long-life true colour LED illumination
• Long working distance and large depth of field
• Click-stop zoom indexing
• Modular system with optional extras for tailored configurations

Features & Benefits Of The SX Range

Perfect Detail
With every model in the SX Elite range, you will receive perfect clarity and the visual detail you need for your application. Thanks to the Greenough optics for every model of this range, you can enjoy exceptional image clarity.

Improved Depth Perception
Get a real feel for the depths of your components and PCBs with the SX Elites depth perception. This makes the SX80 ideal for working with tools for assembly, repair, inspection and more.

Configure To Your Requirements
The SX45 can be configured to suit your exact application requirements, with a multitude of high quality stands and accessories. Configure your SX elite stereo microscope to however you need. Read more about these below.

Easy Image Capture
The image capture capabilities allow for simple sharing, reporting, archiving and more.

3 Ranges Of SX Elite Available

SX25 – Compact binocular stereo microscope, 4.5:1 zoom with 180x magnification, perfect for rework and inspection tasks

SX45 - Extra-long working distance, compact binocular stereo microscope, possible to attach to SXC001 Camera with SX45 Elite TR model, 6.25:1 zoom with 200x magnification, working distance up to 220mm

SX80 (This Model) – High resolution binocular stereo microscope, 8:1 zoom with 256x magnification, modular design with tilting head and a camera arm.

Stand Options

Bench stand	Compact & Versatile Low-profile base – optimises ergonomics & reduces worker fatigue Built-in transformer with intensity adjustment for surface & substage illumination
Single Arm Boom With Base	Ideal for larger specimens Stable platform base, or for mounting directly to user’s work surface Enhanced freedom of movement
Double Arm Boom With Base
Double Arm Boom With Clamp
Articulated Arm Boom With Clamp	Ideal for larger specimens Stable platform base, or for mounting directly to user’s work surface Enhanced freedom of movement

Illumination Options

• Bench stand includes: Incident illumination (overhead, angled) & sub-stage illumination.
• 64 LED Ring Light
• 64 LED Quadrant Ring Light
• 144 LED Quadrant Ring Light
• White UV Ring Light

Software Options

Objective Range Data
