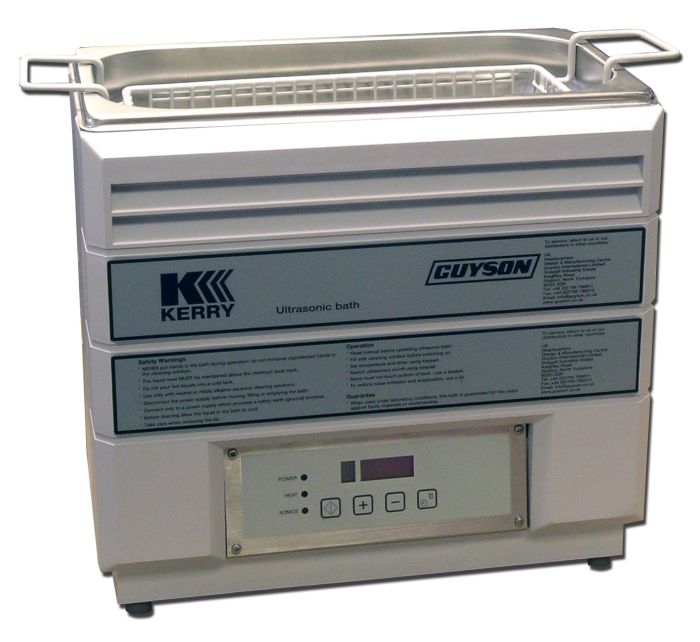

Microprocessor controlled the MKC 6 (approx 6 litres) ultrasonic cleaning baths allow the user to pre-set exact cleaning times and temperatures, ensuring the same high level of cleanliness every time.

The MKC 6, 14 and 22 provide:

  • Simple 4 button membrane keypad with LCD panel
  • Variable temperature control to maintain the bath contents between 20ºC and 80ºC in 1ºC
  • increments.
  • Timer control allowing continuous or timed operation (6 secs to 1hr 40 mins).

Key Features

  • Integral Guyson Pulsatron high efficiency generators with automatic tuning for powerful cleaning action.
  • Baths rated for continuous use if required.
  • Dual-purpose fail-safe, resettable thermal fuse - protects against over temperature operation / low liquid level.
  • CE compliant.
  • Stainless steel tank
  • 2 Years Warranty

General Specifications

Internal tank dimensions (L x W)Effective capacity (approx.)
150 x 300 mm 6 litres

PULSATRON KC & MKC BATHS - TECHNICAL DATA



KC2

KC3

MKC6

MKC14

MKC22

Overall - length (front to back)

162 mm

162 mm

205 mm

380 mm

555 mm

Overall - width (left to right)

176 mm

265 mm

325 mm

325 mm

325 mm

Overall - height

250 mm

250 mm

310 mm

310 mm

310 mm

Tank (Basket) - length (front to back)

135 (91) mm

135 (103) mm

150 (103) mm

325 (256) mm

505 (434) mm

Tank (Basket) - width (left to right)

149 (104) mm

238 (180) mm

300 (230) mm

300 (230) mm

300 (243) mm

Tank (Basket) - depth

100 (62) mm

100 (63) mm

150 (100) mm

150 (100) mm

150 (100) mm

Selectable temperature

-

-

 20ºC - 80ºC

Heater power

-

-

200W

600W

800W

Operating frequency

 38 kHz +/- 10%

Sonics timing (mins)

-

-

 0.1 - 99.9 or constant

Power (RMS)

75W

85W

110W

250W

330W

Drain facility

-

-

-

tap

tap

Weight (kg)

2.5

3.6

5.8

9.3

13.4

Mains input / frequency

 220/240V  50 Hz

ACCESSORIES

Plug and lead set

 Included in price of bath

Basket, stainless steel

       Optional

Lid, stainless steel with handle

       Optional

Beaker holder

-

-

 Optional

Beaker, 600ml Pyrex

-

-

 Optional



KEY FEATURES

  • Integral Guyson Pulsatron high efficiency generators with automatic tuning for powerful cleaning action.
  • Baths rated for continuous use if required.
  • Dual-purpose fail-safe, resettable thermal fuse - protects against over temperature operation / low liquid level.
  • CE compliant.



KC & MKC Baths are particularly suitable for applications within the following fields:

  • Medical
  • Optical
  • Dental
  • Industrial

Baths are supplied with a free starter pack of general purpose cleaning agent (UK only).
