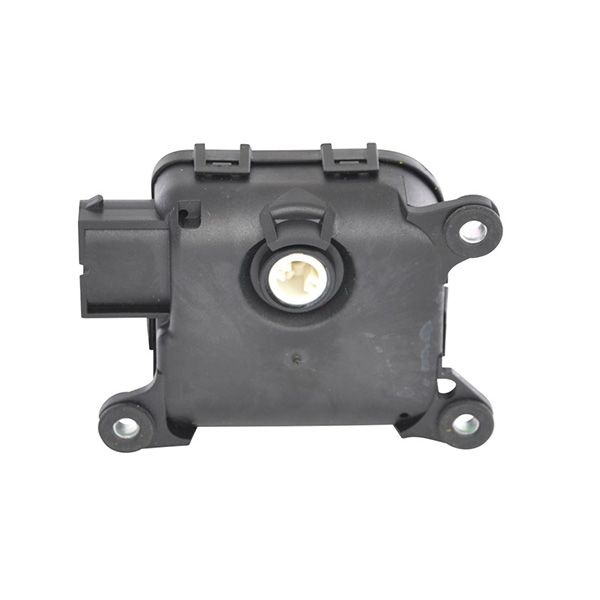

BOSCH VMC 24 V 0,3 W
Nominal voltage U N
24 V
Nominal power P N
0.3 W
Nominal current I N
≤ 100 mA
Maximum current I max
0.17 mA
Nominal speed n N
7 min-1
Nominal torque M N
0,23 Ncm
Breakaway torque M A
≥ 70 Ncm
Reduction i
405 : 1
Direction of rotation
Anti-clockwise rotation
Shaft load max. axial F a
≤ 30 N
Shaft load max. radial F r
≤ 50 N
Type of duty
short-time duty
Degree of protection
IP 40
Weight
0,120 kg
Gear
Yes
Clockwise
1 to (+), 3 to (–)
Anti-clockwise
1 to (–), 3 to (+)
Connector
Connector Housing: RB- 1 928 403 187 / Connector Terminal: TE 5-928999-1
Hallsensor
No
Length
90 mm
Width
63.5 mm
More Information
Fulfilment
5-7 working days
