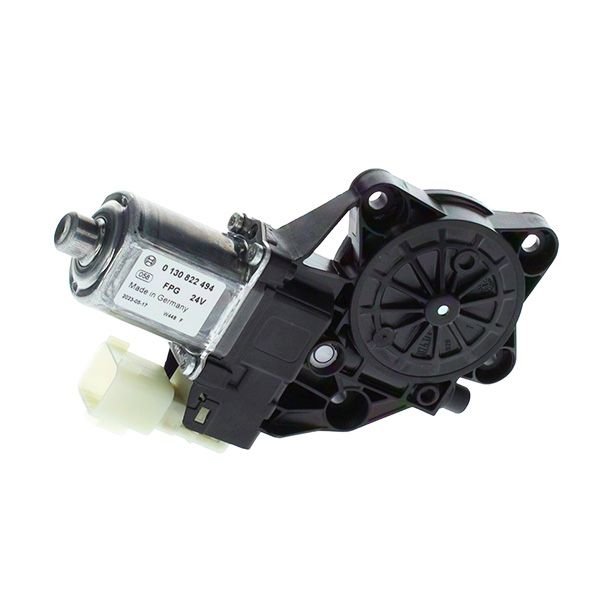

BOSCH FPG 2 24 V 8,2 W

Nominal voltage UN 24 V
Nominal power PN 8.2 W
Nominal current IN 3 A
Maximum current Imax 34 A
Nominal speed nN 78.5 min-1
Nominal torque MN 2,00 Nm
Breakaway torque MA 13,5 Nm
Reduction i 73 : 1
Direction of rotation Anti-clockwise rotation
Type of duty short-time duty
Degree of protection IP54
Weight 0,604 kg
Gear Yes
Part number mirror-image 0130822495
Clockwise I to (+), II to (-)
Anti-clockwise II to (+), I to (-)
Connector Connector Housing: Yazaki 7287-1116-30
Hallsensor Yes
Length 200 mm
Width 80 mm
More Information
Fulfilment
Call for more information
Write Your Own Review
You're reviewing:BOSCH FPG 2 24 V 8,2 W
Customer Questions
No Questions
Did you find what you were looking for?

BOSCH FPG 2 24 V 8,2 W

SKU
540-0130822494
£60.00 (£72.00 inc VAT)
Delivery time varies on manufacturer; call for details

Nominal voltage UN 24 V
Nominal power PN 8.2 W
Nominal current IN 3 A
Maximum current Imax 34 A
Nominal speed nN 78.5 min-1
Nominal torque MN 2,00 Nm
Breakaway torque MA 13,5 Nm
Reduction i 73 : 1
Direction of rotation Anti-clockwise rotation
Type of duty short-time duty
Degree of protection IP54
Weight 0,604 kg
Gear Yes
Part number mirror-image 0130822495
Clockwise I to (+), II to (-)
Anti-clockwise II to (+), I to (-)
Connector Connector Housing: Yazaki 7287-1116-30
Hallsensor Yes
Length 200 mm
Width 80 mm
