Bosch EXAConnecT 2.0 Professional Bluetooth screwdriver controller 0 602 491 003

EXAConnecT Bluetooth Access Point

The Bluetooth EXACT cordless screwdriver system thinks for itself. The BT-EXACT screwdriver takes its commands from the EXAConnecT controller, which stores the work in progress in real time. The system can talk to and take commands from external devices like a PLC, bar code scanner or host network if desired. Improve your assembly process and never miss another fastener.

Product information:

The EXAConnecT controller forms a link between your process control network and the Bluetooth connected BT-EXACT cordless screwdriver.

Information about the screwdriving process can be exchanged bi-directionally in real time to ensure that each BT-EXACT cordless screwdriver knows exactly what it has to do and when to do it.
One EXAConnecT controller can run seven BT-EXACT screwdrivers simultaneously, making it very cost-effective compard to other systems.

The EXAConnecT controller can output data from up to seven BT-EXACT screwdrivers via the ethernet connection (up to four BT-EXACT screwdrivers to a PLC via the 24-volt inputs and outputs).When controlling seven BT-EXACT screwdrivers via a PLC, an additional digital I/O module is required.

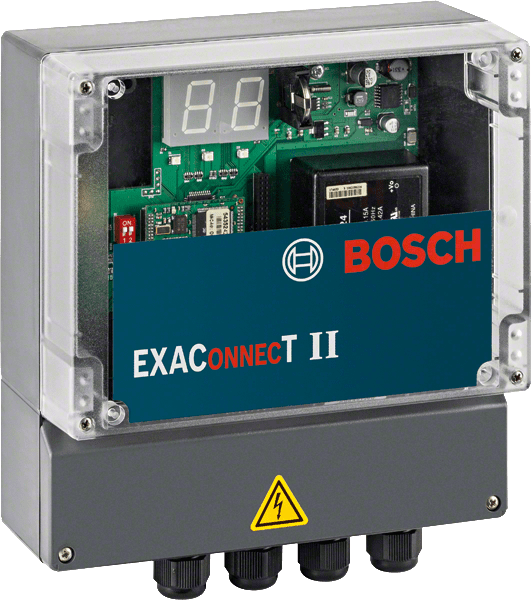

The EXAConnecT Bluetooth controller packs a lot of firepower in a small, easy to install package. The enclosure is IP54 (NEMA 12) rated for dust and moisture
resistance.
The controller has its own processor, flash memory and operating system, so it can run as a stand-alone unit or connect to a variety of controls.
Various status LEDs and a two-digit display that can be seen through the clear cover alert you of connection status or sytem notifications

The EXAConnecT controller forms the link between your process control network and the Bluetooth-
connected BT-EXACT cordless screwdriver. Information about the screwdriving process can be exchanged bidirectionally in real time to ensure that each BT-EXACT
cordless screwdriver knows exactly what it has to do and when to do it. One EXAConnecT controller can run
seven BT-EXACT screwdrivers simultaneously, making it very cost-effective compared to other systems.
The EXAConnecT controller can output data from up to seven BT-EXACT screwdrivers via the Ethernet connection (up to four BT-EXACT screwdrivers to a PLC
via the 24-volt inputs and outputs). When controlling seven BT-EXACT screwdrivers via a PLC, an additional digital I/O module is required. Refer to page 49 for
details.
A wide-range power supply ensures the system works anywhere in the world without the need for additional power transformers. An internal backup memory and real-time clock ensure that critical data is always saved, even in the event of a power loss.

SKU
540-0-602-491-003
£3,400.00 (£4,080.00 inc VAT)
Delivery time varies on manufacturer; call for details
The EXAConnecT controller forms a link between your process control network and the Bluetooth connected BT-EXACT cordless screwdriver.
