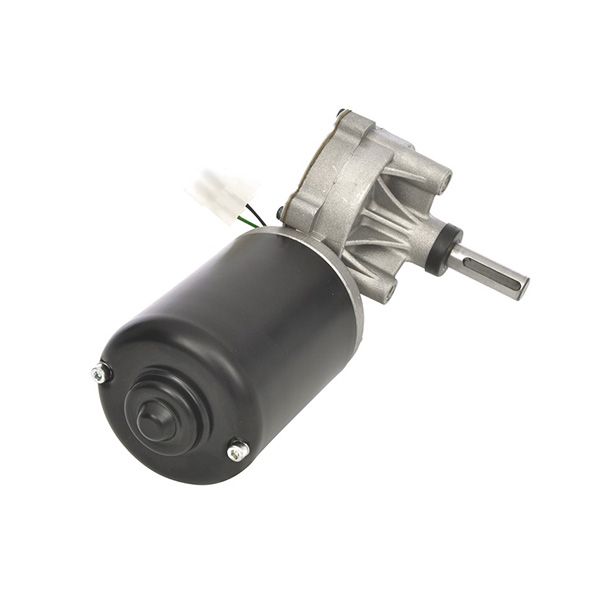

BOSCH EFP 24 V 78,5 W

£265.00 (exc VAT) (£318.00 inc VAT)

BOSCH EFP 24 V 78,5 W

Zoom Out
Zoom In

Nominal voltage UN 24 V
Nominal power PN 79 W
Nominal current IN 7 A
Maximum current Imax 36 A
Nominal speed nN 70 min-1
Nominal torque MN 10 Nm
Breakaway torque MA 70 Nm
Reduction i 50 : 1
Direction of rotation Drehrichtung gegen den Uhrzeigersinn
Type of duty continuous duty
Degree of protection IP23
Weight 2,808 kg
Gear Yes
Clockwise 5 to (-), 4 to (+)
Anti-clockwise 4 to (-), 5 to (+)
Connector Housing TE 180904-0 / Terminal TE 160927-2 for 1,5 - 2,5 mm²
Length (unpacked) 270 mm
Width (unpacked) 100 mm
Diameter (unpacked) 44 mm
Hallsensor No
