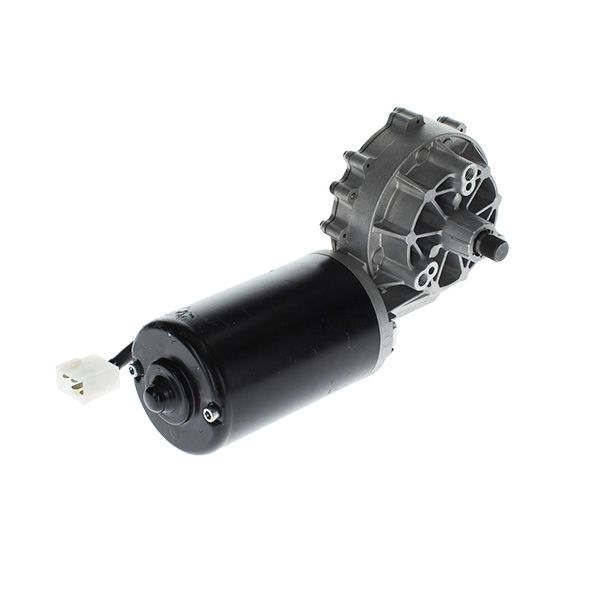

BOSCH EDP EDP

Nominal voltage UN 24 V
Nominal power PN 39 W1)
Nominal current IN 6 A
Maximum current Imax 26 A
Nominal speed nN 40 min-1
Nominal torque MN 10 Nm
Breakaway torque MA 80 Nm
Reduction i 96 : 2
Direction of rotation Drehrichtung gegen den Uhrzeigersinn
Type of duty Dauerbetrieb
Degree of protection IP 23
Weight 5,100 kg
Gear Yes
Length (unpacked) 310 mm
Width (unpacked) 200 mm
Diameter (unpacked) 177
Connector Connector type AMP C-180906
Hallsensor No
More Information
Fulfilment
Call for more information
Write Your Own Review
You're reviewing:BOSCH EDP EDP
Customer Questions
No Questions
Did you find what you were looking for?

BOSCH EDP EDP

SKU
540-0986337451
£440.00 (£528.00 inc VAT)
Delivery time varies on manufacturer; call for details

Nominal voltage UN 24 V
Nominal power PN 39 W1)
Nominal current IN 6 A
Maximum current Imax 26 A
Nominal speed nN 40 min-1
Nominal torque MN 10 Nm
Breakaway torque MA 80 Nm
Reduction i 96 : 2
Direction of rotation Drehrichtung gegen den Uhrzeigersinn
Type of duty Dauerbetrieb
Degree of protection IP 23
Weight 5,100 kg
Gear Yes
Length (unpacked) 310 mm
Width (unpacked) 200 mm
Diameter (unpacked) 177
Connector Connector type AMP C-180906
Hallsensor No
