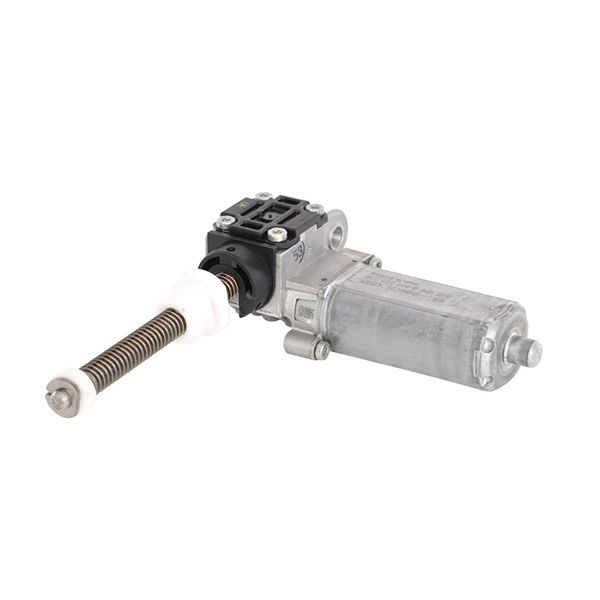

BOSCH AHC Spindle 12 V 0,7 W

Nominal voltage UN 12 V
Nominal power PN 0.7 W
Nominal current IN ≤ 9 A
Maximum current Imax 28 A
Nominal force FN 500 N
Maximum force Fmax 3000 N
Adjustment speed vN 13 mm/s
Direction of rotation Anti-clockwise rotation
Degree of protection IP 50
Weight 0,636 kg
Clockwise 3 to (+), 1 to (-)
Anti-clockwise 1 to (+), 3 to (-)
Length (unpacked) 190 mm
Width (unpacked) 160 mm
Connector Connector Housing: FCI 3 023 59 01 / Connector Terminal: TE MQS PIN Contact 6-928918-1 Pin 0.63 x 0.63 mm / TE MPQ Pin
Hallsensor Yes
SKU
540-0390203229
£90.00 (£108.00 inc VAT)
Delivery time varies on manufacturer; call for details
Nominal voltage UN 12 V
Nominal power PN 0.7 W
Nominal current IN ≤ 9 A
Maximum current Imax 28 A
Nominal force FN 500 N
Maximum force Fmax 3000 N
Adjustment speed vN 13 mm/s
Direction of rotation Anti-clockwise rotation
Degree of protection IP 50
Weight 0,636 kg
Clockwise 3 to (+), 1 to (-)
Anti-clockwise 1 to (+), 3 to (-)
Length (unpacked) 190 mm
Width (unpacked) 160 mm
Connector Connector Housing: FCI 3 023 59 01 / Connector Terminal: TE MQS PIN Contact 6-928918-1 Pin 0.63 x 0.63 mm / TE MPQ Pin
Hallsensor Yes
