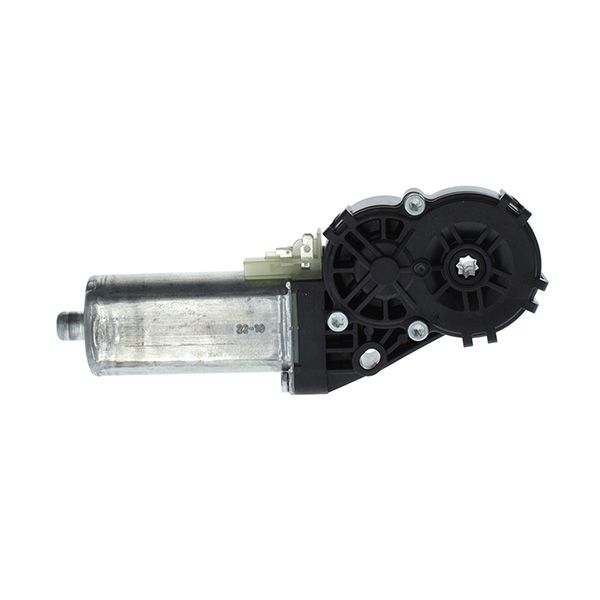

BOSCH AHC and AHC 2 24 V 3,5 W
Nominal voltage U N
24 V
Nominal power P N
3.5 W
Nominal current I N
≤ 2 A
Maximum current I max
8.2 A
Nominal speed n N
16.9 min-1
Nominal torque M N
3,50 Nm
Breakaway torque M A
≥ 23,3 Nm
Reduction i
217 : 1
Direction of rotation
Anti-clockwise rotation
Type of duty
short-time duty
Degree of protection
IP 50
Weight
0,496 kg
Gear
Yes
Part number mirror-image
0390203312
Clockwise
I to (-), II to (+)
Anti-clockwise
I to (+), II to (-)
Footnote 1
1 ) On request
Length (unpacked)
187 mm
Width (unpacked)
60 mm
Einschaltdauer
5 min
Connector
Connector Housing TE AMP 968182-1 Connector Locker TE AMP 0-968183-1 Connector Terminals TE AMP Junior-Power-Timer 0-927768-1 (x2) TE AMP Micro-Timer-III 0-968052-1 (x2)
Hallsensor
Yes
