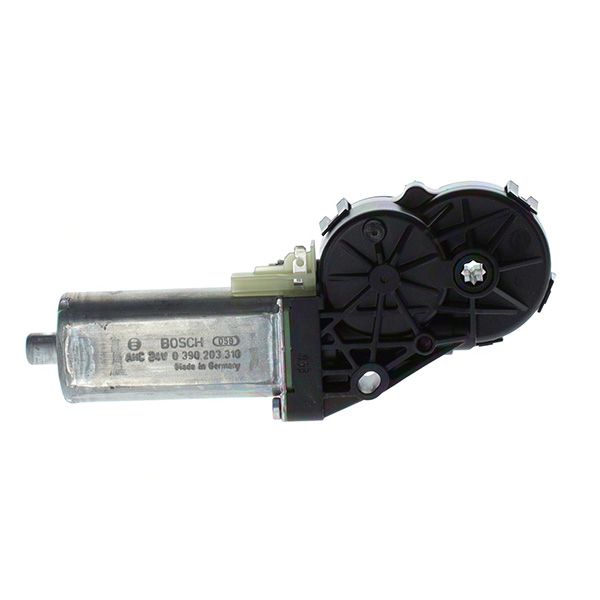

BOSCH AHC and AHC 2 24 V 3,5 W

Nominal voltage UN 24 V
Nominal power PN 3.5 W
Nominal current IN ≤ 2 A
Maximum current Imax 8.2 A
Nominal speed nN 16.9 min-1
Nominal torque MN 3,50 Nm
Breakaway torque MA ≥ 23,3 Nm
Reduction i 217 : 1
Direction of rotation Anti-clockwise rot
Type of duty short-time duty
Degree of protection IP 50
Weight 0,500 kg
Gear Yes
Part number mirror-image 0390203311
Clockwise I to (-), II to (+)
Anti-clockwise I to (+), II to (-)
Footnote 1 1) On request
Length (unpacked) 187 mm
Width (unpacked) 60 mm
Einschaltdauer 5 min
Connector Connector Housing TE AMP 968182-1 / Connector Locker TE AMP 0-968183-1 / Connector Terminals TE AMP Junior-Power-Timer 0-927768-1 (x2) TE AMP Micro-Timer-III 0-968052-1 (x2)
Hallsensor No
SKU
540-0390203310
£67.00 (£80.40 inc VAT)
Delivery time varies on manufacturer; call for details
Nominal voltage UN 24 V
Nominal power PN 3.5 W
Nominal current IN ≤ 2 A
Maximum current Imax 8.2 A
Nominal speed nN 16.9 min-1
Nominal torque MN 3,50 Nm
Breakaway torque MA ≥ 23,3 Nm
Reduction i 217 : 1
Direction of rotation Anti-clockwise rot
Type of duty short-time duty
Degree of protection IP 50
Weight 0,500 kg
Gear Yes
Part number mirror-image 0390203311
Clockwise I to (-), II to (+)
Anti-clockwise I to (+), II to (-)
Footnote 1 1) On request
Length (unpacked) 187 mm
Width (unpacked) 60 mm
Einschaltdauer 5 min
Connector Connector Housing TE AMP 968182-1 / Connector Locker TE AMP 0-968183-1 / Connector Terminals TE AMP Junior-Power-Timer 0-927768-1 (x2) TE AMP Micro-Timer-III 0-968052-1 (x2)
Hallsensor No
