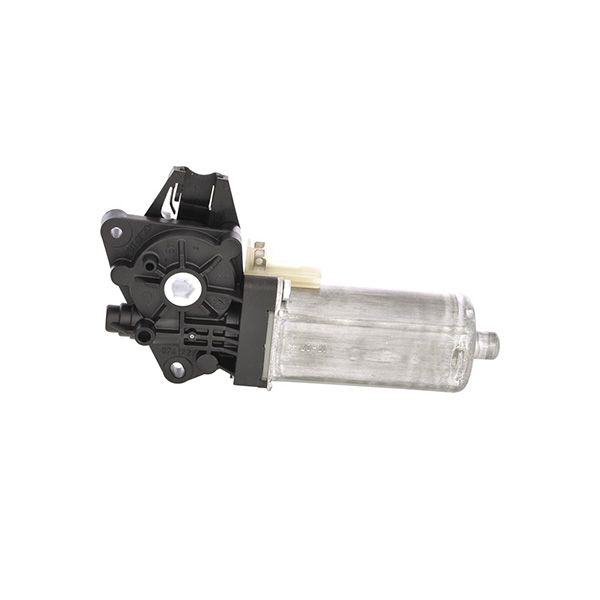

BOSCH AHC and AHC 2 24 V 15,6 W
Nominal voltage U N
24 V
Nominal power P N
15.6 W
Nominal current I N
≤ 4,8 A
Maximum current I max
20 A
Nominal speed n N
99.5 min-1
Nominal torque M N
1,65 Nm
Breakaway torque M A
≥ 11 Nm
Reduction i
50 : 1
Direction of rotation
Anti-clockwise rotation
Type of duty
short-time duty
Degree of protection
IP 50
Weight
0,444 kg
Gear
Yes
Clockwise
I to (-), II to (+)
Anti-clockwise
I to (+), II to (-)
Length (unpacked)
160 mm
Width (unpacked)
50 mm
Einschaltdauer
5 min
Connector
Connector Housing TE AMP 968182-1 / Connector Locker TE AMP 0-968183-1 / Connector Terminals TE AMP Junior-Power-Timer 0-927768-1 (x2)
Hallsensor
No
More Information
Fulfilment
5-7 working days
