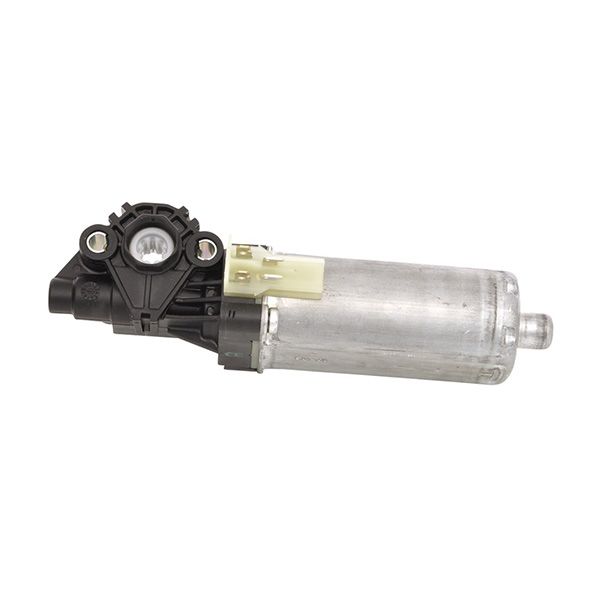

BOSCH AHC and AHC 2 null
Nominal voltage U N
12 V
Nominal power P N
8.6 W
Nominal current I N
≤ 5 A
Maximum current I max
24 A
Nominal speed n N
820 min-1
Nominal torque M N
0,35 Nm
Breakaway torque M A
≥ 1,5 Nm
Reduction i
27 : 4
Direction of rotation
Anti-clockwise rotation
Type of duty
short-time duty
Degree of protection
IP 50
Weight
0,457 kg
Gear
Yes
Part number mirror-image
0 390 201 915
Clockwise
I to (+), II to (–)
Anti-clockwise
I to (–), II to (+)
Footnote A
A square-wave period is generated for each turn of the armature.
Length (unpacked)
156 mm
Width (unpacked)
50 mm
Connector
Connector Housing TE AMP 968182-1 / Connector Locker TE AMP 0-968183-1 / Connector Terminals TE AMP Junior-Power-Timer 0-927768-1 (x2) TE AMP Micro-Timer-III 0-968052-1 (x2)
Hallsensor
Yes
Duty cycle
5 min
